Hastelloy C276 Bolts
Buy Hastelloy C276 bolts, nuts and other fasteners from Boltport, an Indian manufacturer & supplier of Hastelloy C276 bolting materials to ASTM B574, B564, F467, F468, UNS N06625, DIN EN 2.4819 and DIN 17752 specifications. Alloy c276 bolts have unmatched resistance to pitting, crevice stress corrosion cracking in most reducing mediums. They also exhibit exceptional resistance to strong solutions of oxidizing salts and can withstand the corrosive effects of wet chlorine gas, formic and acetic acids, acetic anhydride, seawater, brine, hypochlorite and chlorine dioxide solutions.

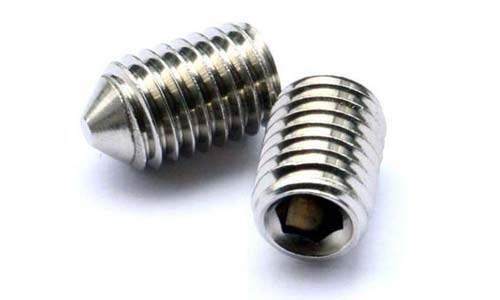

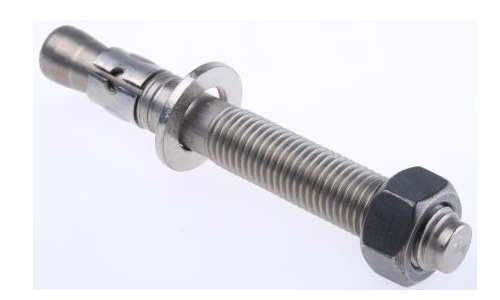

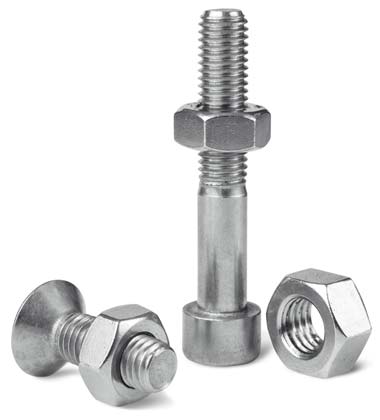

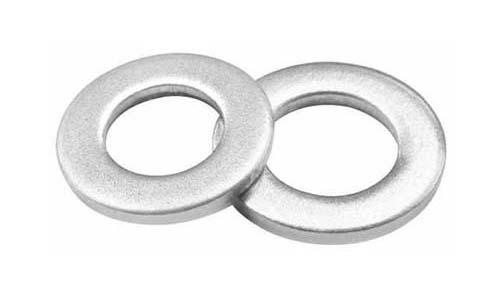

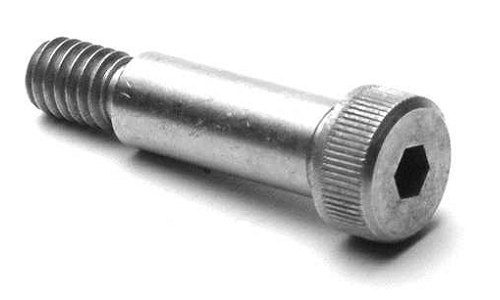

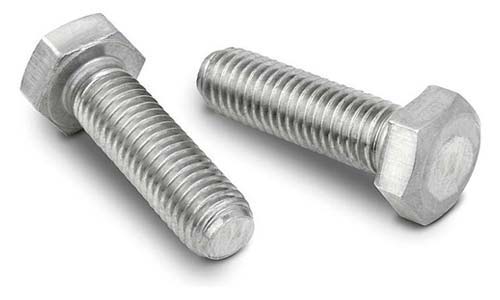

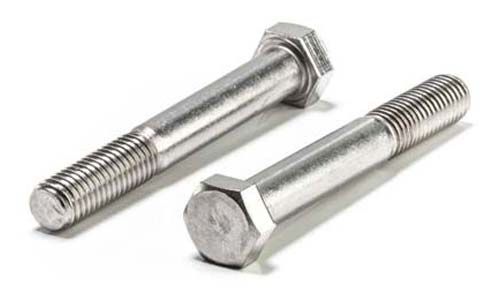

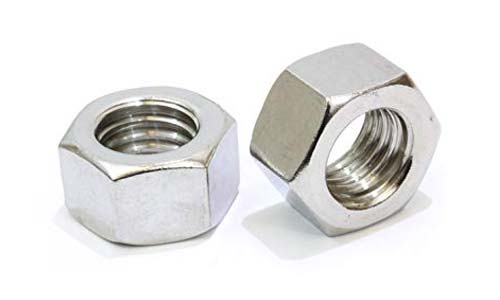

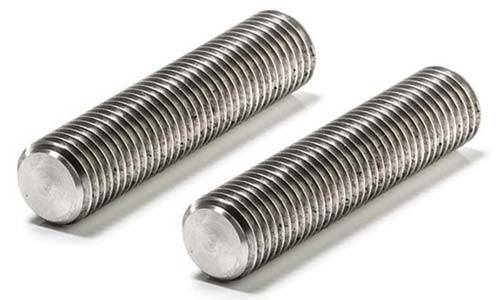

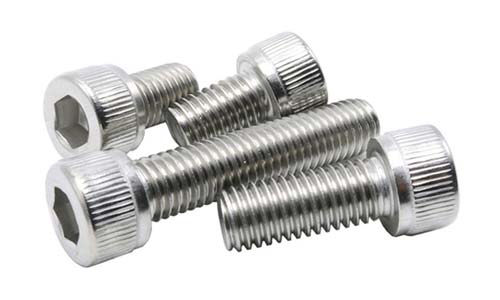

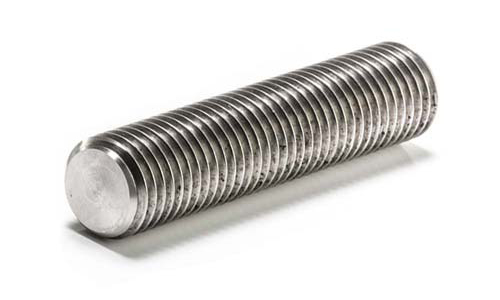

Boltport fasteners offer Hastelloy C276 bolts and nuts with standard and custom manufacturing to your specification. We covers Hastelloy c276 hex bolts, stud bolts, socket head cap screws, set screws, heavy hex bolts, shoulder bolts, wedge anchor bolts, threaded rods, hex nuts, plain washers and other fastener in metric and inch sizes with coarse, fine and extra fine threads to ASME, UN, BS, ISO and DIN standards.

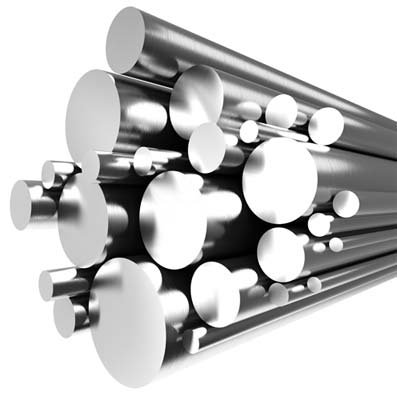

Hastelloy C276 Bolting Material Specifications
- ASTM B574 / ASME SB574
- ASTM B462 / ASME SB462
- ASTM B564 / ASME SB564
- ASTM B575 / ASME SB575
- ASTM F467 / ASTM F467M
- ASTM F468 / ASTM F468M
- AMS 5750
- DIN 17744 / DIN 17750 / DIN 17752
- Alloy 276
- UNS N10276
- DIN / EN / Werkstoff No. 2.4819
Hastelloy C276 Bolt Properties
| Chemical Composition | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Elements | Ni | Mo | Cr | Fe | W | Co | Mn | V | Si | P | S | C |
| Min % | Bal. | 15.00 | 14.50 | 4.00 | 3.00 | - | - | - | - | - | - | - |
| Max % | - | 17.00 | 16.50 | 7.000 | 4.500 | 2.500 | 1.000 | 0.350 | 0.080 | 0.040 | 0.030 | 0.010 |
| Mechanical Properties | |||
|---|---|---|---|
| Temperature (°F) | Ultimate Tensile (ksi) | Yield Strength at 0.2% Offset (ksi) | Elongation % |
| Room Temp. | 107 | 49 | 72 |
| 400 | 95 | 38 | 69 |
| 600 | 90 | 33 | 67 |
| 800 | 89 | 30 | 65 |
| 1000 | 85 | 31 | 63 |
| 1200 | 80 | 30 | 62 |
| 1400 | 68 | 27 | 78 |
Hastelloy C276 Bolting Benefits
- Unmatched resistance to pitting and stress corrosion cracking
- Excellent resistance in reducing mediums
- Exceptional resistance to strong solutions of oxidizing salts
- Can withstand the corrosive effects of wet chlorine gas, hypochlorite and chlorine dioxide
- Good resistance to hot contaminated organic and inorganic media, formic and acetic acids, acetic anhydride, seawater, and brine.
Hastelloy C276 Bolting Applications

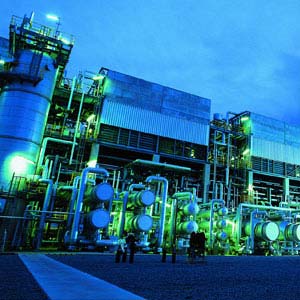

- Chemical and petrochemical processing units
- Paper and pulp processing
- Boiler & pressure vessels

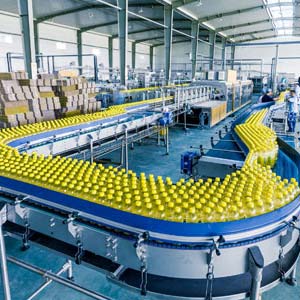

- Food and beverage processing

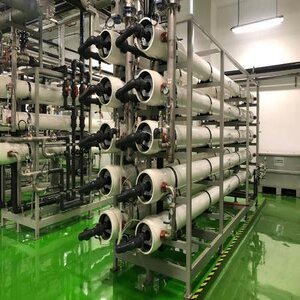

- Pharmaceuticals and water treatment
